Straight-Lined, Modern-Looking 3-Tier Linear Display Stand Plans

I designed this project so that cupcakes and small products can be presented in one long, straight row, rising tier by tier. The three horizontal shelves slot into two angled side plates, one at each side of the stand. I call these side plates shelf holders, as the guide does: each is a single-piece plate that looks like the letter "Λ" from the side and carries the slots for all three shelves along its angled edge. The stand occupies an area of about 25" × 14-13/16" (63.5 × 37.7 cm) on the table and rises to a height of 17-1/8" (43.5 cm).

A multi-purpose stand: I designed this stand to be used for more than cupcakes. The same shelves work for presenting light sweets such as cupcakes, cookies, and macarons on a celebration table, and also as a sales display at a fair or market stall: jewelry, small gifts, small handmade items, and counter items such as business cards and price tags can be lined up side by side on the 25" (63.5 cm) long shelves. Because each tier sits behind the one before it, the items in the back rows are visible from the front too; the long, flat shelves also sit parallel to the front edge of the counter. The usage details are in the Capacity and Layout block.

Why stepped: Each shelf starts about 4-1/8"–4-5/8" (10.5–11.7 cm) behind the shelf below it. So an open strip at least 4-1/8" (10.5 cm) wide, completely uncovered on top, is left in front of the lower two shelves; you don't have to reach under the tier above to see and take the cupcakes. The back of the stand, on the other hand, is flat: the back edge of the shelf holders drops straight down, and the top shelf ends almost flush with that edge. You can move the stand up close to a wall or a backdrop board; the presentation faces one direction, the front, where the customer or the guest arrives.

Why there's no main post in the middle: Because I carry the shelves from the two sides, no part stands in front of or above the shelves. The shelf holders sit 3" (7.6 cm) in from the shelf ends; 18" (45.7 cm) of uninterrupted shelf surface is left between them. The three shelves have a total surface of about 3.09 sq ft (0.29 m²); that's about 1.2 times the table area the stand occupies.

How it stays up: The load rides on the interlocking joints, not on screws or nails. The two notches on the back edge of each shelf fit onto the shelf holders, and the holders' slots fit onto the shelf; the two parts grip each other. The shelf's weight travels from the lower edge of the slot into the holder, and along the holder's two legs down to the table. Because the three shelves tie the two holders together, the stand acts as a single frame against swaying sideways.

Why glue-free: All five parts come out of a single 2×4 ft (61 × 122 cm) sheet of plywood and are joined to each other only by the interlocking joints; there's no glue, nail, screw, or miter cut. Setup takes seconds; taken apart, the stand breaks down into five flat parts. You can take it to a fair, a market stall, or a celebration as a flat package and set it up on site, then take it apart again when you're done.

Part of a modular series: This stand is the linear unit of a modular series that shares the same shelf holder profile, the same 6" (15.2 cm) shelf depth, and the same tier heights. You can set up several units side by side, back to back, or together with the series' corner unit; the details are in the Modular Use block.

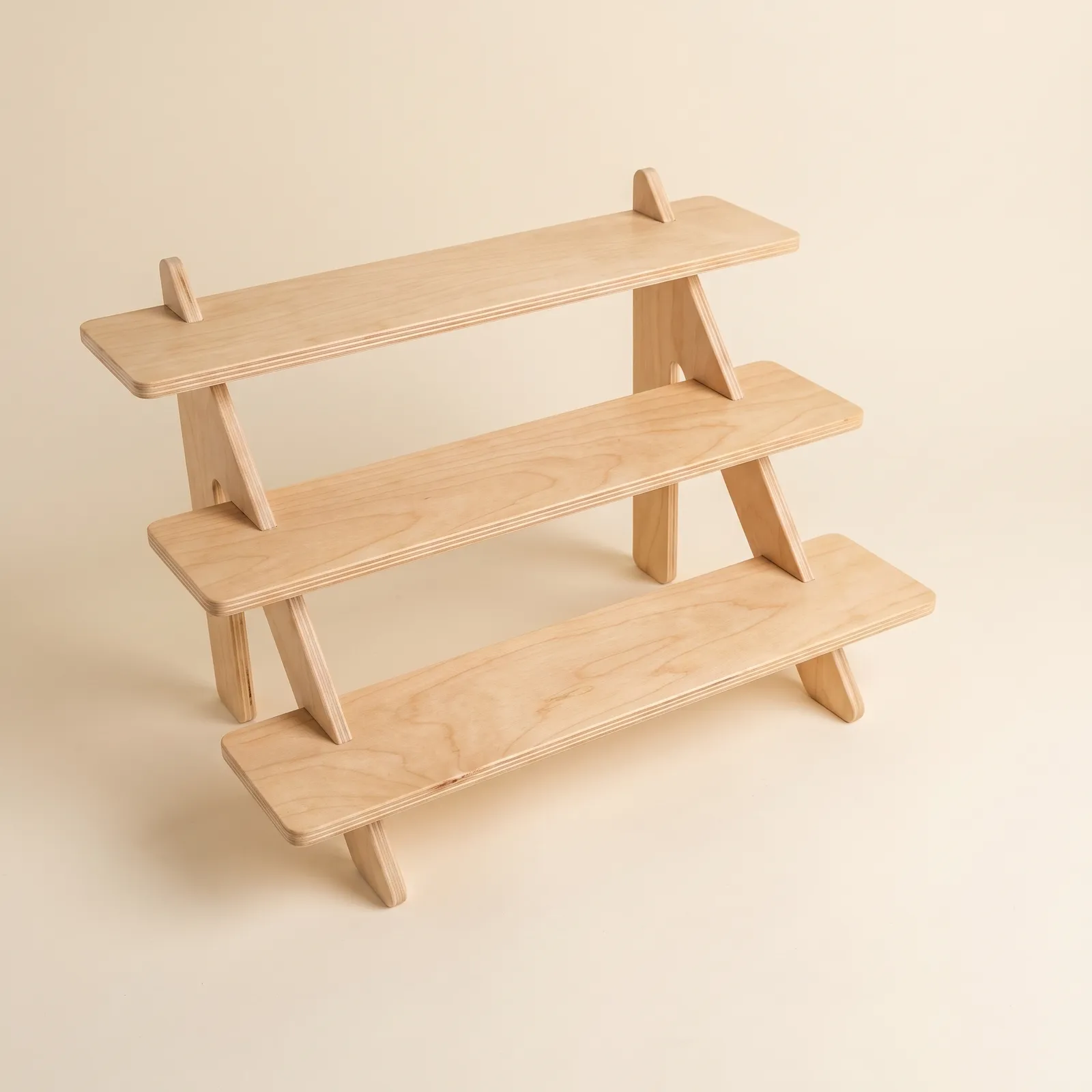

Once assembled, the structure has a width of 25" (63.5 cm), a depth of about 14-13/16" (37.7 cm), and a height of 17-1/8" (43.5 cm).

All three shelves are the same size: 25" × 6" (63.5 × 15.2 cm), with corners rounded to a 1/2" (12.7 mm) radius. The top face of each shelf sits at the following height above the floor:

• 1st shelf (bottom): 4-1/2" (11.4 cm)
• 2nd shelf: 10" (25.4 cm)
• 3rd shelf (top): 15-1/2" (39.4 cm)

There is 5" (12.7 cm) of clear height between two shelves. There is 4" (10.2 cm) of space under the bottom shelf, down to the table. The tips of the shelf holders rise 1-5/8" (4.1 cm) above the top shelf; the highest point of the stand is these tips.

Each shelf starts behind the one below it: the 2nd shelf about 4-5/8" (11.7 cm) behind the 1st, and the 3rd shelf about 4-1/8" (10.5 cm) behind the 2nd. The front edge of the bottom shelf sets the stand's total depth; this shelf extends only about 5/16" (0.8 cm) in front of the feet of the shelf holders that rest on the table.

The shelf holders sit 3" (7.6 cm) in from both ends of the shelves: 18" (45.7 cm) between their inner faces and 19" (48.3 cm) between their outer faces. The base of each holder that sits on the table is 14-1/2" (36.8 cm) deep.

With the notches subtracted, the three shelves have a total surface of about 3.09 sq ft (0.29 m²); the stand takes up about 2.57 sq ft (0.24 m²) on the table. When several units are set up side by side, the width grows by 25" (63.5 cm) for each unit (Modular Use block).

Capacity: When a single unit is filled with a single size of cupcake, it holds about 260 mini, 60 standard, or 45 large cupcakes. I calculated these figures from the dimensions of the three shelves, placing the cupcakes on the shelves one by one. I define the sizes by the cupcake's bottom and top diameter:

• Mini: bottom diameter 3/4" (1.9 cm), top diameter 1-1/4" (3.2 cm)
• Standard: bottom diameter 2" (5.1 cm), top diameter 2-1/2" (6.4 cm)
• Large: bottom diameter 2" (5.1 cm), top diameter 3" (7.6 cm)

You can measure your own cupcake together with its liner to see which size it falls into. The figures are approximate; the count changes with the diameter of the paper liner and how tightly you space them. When you set up more than one unit, multiply the capacity by the number of units; I don't give a separate figure for side-by-side or back-to-back layouts.

As a sales display: This stand was designed for product display as much as for cupcakes. At a fair, market, or craft stall you can arrange small items such as jewelry, small gifts, and handmade soap and candles tier by tier, together with counter items such as business cards and price tags. The 25" (63.5 cm) long flat shelves present the items in long rows parallel to the front edge of the counter; because each tier sits behind the one before it, the items in the back rows are visible from the front too. The 5" (12.7 cm) of clear height between the tiers is comfortable for small items; put a taller piece on the open top shelf. I designed the shelves for light items; don't put bottles, full bowls, or heavy decor objects on them.

Tier height: The 5" (12.7 cm) of clear height between the tiers is generous for cupcakes: even a large cupcake that rises to 3-1/2" (8.9 cm) with its frosting leaves about 1-1/2" (3.8 cm) of clearance under the shelf above. What's more, the upper shelf covers only the rear 1-3/8"–1-7/8" (3.5–4.8 cm) band of the shelf below; the rest of that shelf is completely open on top. The shelf depth is 6" (15.2 cm); standard cupcakes can be arranged in two rows on a shelf.

My layout suggestions:

• Give the fullest arrangement to the lower tiers. Keeping the weight low also helps the stand's balance.
• Account for where the shelf holders are. 3" (7.6 cm) in from each end of every shelf, the holder plate, 1/2" (12.7 mm) thick, rises from the rear 2"–2-1/2" (5.1–6.4 cm) of the shelf. Arrange items in front of and on either side of this thin plate; no cupcake goes on top of it.
• Keep the shelf ends for light items. The 3" (7.6 cm) ends outside the holders are for small, light items.
• The top shelf is your showcase. It's the only tier that's completely open on top; display a few special pieces here, such as ones with name decorations, candles, or tall frosting, or the product you most want to catch the eye.
• Don't put cupcakes directly on the wood surface; arrange them in their paper liners or on small serving plates (details in the Surface, Edges and Food Contact block).

I designed this stand as a unit that can be used on its own but was also conceived as part of a series. The units aren't connected to one another: there are no screws, clamps, or connectors between them. Each unit stands independently on its own two shelf holders; you position them side by side, back to back, or together with the corner unit, as you need. You can set up a single unit at one event and three units at the next.

Why they work together: The units in the series share the same shelf holder profile, the same 6" (15.2 cm) shelf depth, and the same tier heights. So when you put two units side by side, the shelves continue at the same height and the same step; the row reads as one long stand.

Layouts you can set up:

• Side by side: Two units give an uninterrupted row of shelves 50" (127 cm) long, and three units 75" (190.5 cm). Each unit comes out of one 2×4 ft (61 × 122 cm) sheet; the parts of four units fit on a single 4×8 ft (122 × 244 cm) sheet.
• Back to back: When you place two units with their flat backs facing each other, you get a display island with a footprint of about 25" × 29-5/8" (63.5 × 75.3 cm), usable from both directions. It suits customers approaching from both sides of a counter, or a display set in the middle of a table.
• With the corner unit: The series' corner unit (Corner-Fit Modular 3-Tier Display Stand) can sit in the corner of a room or a counter, and it can also be placed at the end of this stand to give the row a corner turn. Two corner units and one linear unit together make a U-shaped layout; the Modular 3-Tier Display Stand Made Up of Straight and Corner Units project gives you one straight and one corner unit in a single package; for the U, you can cut the corner unit twice and build the layout that way.
• Larger layouts: By increasing the number of units, you can build a large, multi-tier display table made of side-by-side and back-to-back rows.

Set up the units on the same flat surface. The shelves continue at the same height only when the bases of all the units sit fully on the same surface; because the units aren't connected to one another, each one carries its own balance. Capacity is calculated for each unit separately: in a combined layout, multiply the figure for a single unit by the number of units.

3 CNC files in SVG, DXF, and DWG format: I provide the same cut package in three formats (SVG, DXF, DWG) so it can be opened with different programs. In the file, the five parts are laid out on a single 24" × 48" (61 × 122 cm) sheet. You don't need paid software to open them: LibreCAD (free, open-source) and QCAD (free community edition), both of which run on Windows and Mac, are enough; if you want a Windows-only option, Autodesk's free viewer DWG TrueView is available. If you're having the parts CNC- or laser-cut, you don't have to open the file yourself — you can hand it straight to the shop.

2 PDF production guides: The same guide in an imperial version with the dimensions written in inches and a metric version with the dimensions written in millimeters. Both are 7-page guides, in English, explained through drawings. They include a perspective view of the stand, dimensioned front and side views, dimensioned drawings of the shelves and shelf holders, notes on sheet thickness and the joints, and a materials page.

I prepared the guide for A3; you can also print it scaled down to A4 or US Letter. Since every dimension is written out in numbers on the page, and the guide has no 1:1 scale template, scaling down doesn't spoil any measurement.

The guide has no separate assembly page, because this stand has no assembly in the conventional sense: once the parts are cut, they fit together with the interlocking joints in seconds. I describe the order of fitting in the Assembly and Disassembly block. The guide also has no cut list table or sheet layout page; the layout is in the CNC file itself, and the full list of the five parts is in the Panel Count and Cut List block in the Materials section. There's no printable template for hand-cutting on this project either: if you'll cut with a jigsaw, you draw the dimensions from the guide onto the sheet (Two Build Options block).

What decides your material on this project isn't the wood species but the thickness. I drew the slots in the shelf holders and the notches in the shelves 1/2" (12.7 mm) wide. Your sheet needs to be thin enough to go into these slots and thick enough to hold the shelves in place.

Nominal versus actual thickness: The thickness on a plywood label and the sheet's real thickness are often different. The sheet I used as the reference in the guide is sold in the US under a "1/2 inch" (12.7 mm) label, but its actual thickness is about 0.453" (11.5 mm). With this sheet, about 1.2 mm of clearance is left in each slot and the shelves go into their slots without being forced. Trust the measurement, not the label: measure the sheet with calipers at several points before you buy it.

In my own build: I built the stand with the dimensions in the guide, using a panel labeled 1/2" (12.7 mm); the parts fit together with the slots in the file without any problem, and no extra adjustment was needed.

Recommended: plywood labeled 1/2" (12.7 mm) or 12 mm, measuring 11.5–12.7 mm in actual thickness. I recommend two product groups:

• Prefinished maple plywood — This is the product I used as the reference on the guide's materials page: Columbia Forest Products PureBond Prefinished Maple Project Panel, 1/2" × 2 × 4 ft (12.7 mm × 61 × 122 cm). It's a hardwood plywood made for interior use, with a maple veneer face; it's sold with the surface sanded and coated with a clear protective layer cured by UV light. Since it needs no paint or varnish, it's my first choice for this stand.
• Birch plywood — Its plies are tight and free of gaps, so the cut edge comes out clean. Where plywood is sold by millimeter thickness (Europe and elsewhere), look for a sheet labeled 12 mm, and be sure to measure its actual thickness. If the sheet is uncoated, you'll need to protect its surface yourself (Surface, Edges and Food Contact block).

Avoid:

• A sheet with an actual thickness above 12.7 mm. The shelves won't go into the 1/2" (12.7 mm) wide slots; you'd have to open up all six joints with sandpaper, and a slot edge that's forced can crack. A 5/8" (15.9 mm) sheet won't go into the slots at all.
• A sheet with an actual thickness of 10 mm or less. A gap of more than 2.5 mm is left in the slots; since the stand is glue-free, the shelves play and the stand wobbles.

If the thickness you measure falls outside the 11.5–12.7 mm range, message me on Etsy before you start cutting. It's possible to redraw the slots for your sheet; let's adapt the file together.

All the parts come out of a single 2×4 ft (61 × 122 cm) sheet. The layout in the cut file measures 24" × 48" (61 × 122 cm). If you buy a 4×8 ft (122 × 244 cm) sheet, four units come out of a single sheet; if you're thinking of building a modular row, this is the most economical way.

The shelves are 25" (63.5 cm) long, while the short edge of the sheet is 24" (61 cm). So the shelves are laid out along the sheet's 48" (122 cm) long edge; no other layout is possible. About 53% of the sheet turns into parts, and the remaining area is in narrow strips: a botched shelf or holder can't be recut from these offcuts. If you're cutting by hand, I recommend keeping a spare piece of sheet on hand.

The 5 parts in the cut file (all of them the thickness of the sheet):

• Shelf (3 pieces): 25" × 6" (63.5 × 15.2 cm), corners rounded to a 1/2" (12.7 mm) radius; on the back edge there are two open notches that fit onto the shelf holders. The three shelves are the same size and look very much alike, but each has its own tier.
• Shelf holder (2 pieces): 17-1/8" × 14-1/2" (43.5 × 36.8 cm), a plate shaped like a "Λ" when seen from the side. Its upright rear leg and its angled front leg are 2-1/2" (6.4 cm) wide; the gap between the two legs rises to 10-1/4" (26.0 cm) above the table. On its angled edge there are three horizontal slots that the three shelves pass into. The two holders are exactly identical; there's no left and right.

Number the shelves in pencil, according to the numbers in the guide, right after cutting them. Which shelf goes on which tier is covered in the Identifying the Parts and Checking the Slots block.

No glue, nails, or screws. I designed this stand to be used glue-free, to be taken apart and set up again. The five parts are joined to one another only by cross halving joints: the notch on the back edge of the shelf fits onto the shelf holder, the holder's slot fits onto the shelf, and the two parts lock each other in place. These joints both carry the load and hold the shelves in place.

Why glue-free: A stand that can be taken apart can be carried and stored as a flat package, and as part of a modular row it can be set up in a different layout at every event. No tools are needed for setup; the moment the shelves are seated in their slots, the stand is ready to use, with no clamps and no drying time to wait out.

Optional glue: If you want to use the stand as a solid, single-piece structure that isn't taken apart, you can apply wood glue to the joint surfaces; in that case the parts can't be taken apart again.

Don't drive nails or screws into the shelf holders or into the area around the shelf notches. The thin sections beside the slots can crack at the edge; and a stand that's been nailed or screwed can no longer be taken apart.

Consumables: To clean up the edges and slot mouths after cutting, 180–220 grit sandpaper, a flat sanding block, and a pencil for numbering the shelves are enough.

This is an indoor tabletop stand. Since the reference sheet is sold prefinished, paint or varnish isn't required; after cutting, the stand is ready to use.

Cut edges: The prefinished coating is only on the faces of the sheet. On the cut edges the plywood's layer lines are left exposed, as bare wood. You can leave the edges in their natural state, or brush just a thin coat of water-based varnish onto the edges alone (Sanding and Edge Finishing block).

If you still want to paint: Paint may not grip a UV-coated surface well directly. Dull the surface with 220 grit sandpaper, then apply a bonding primer and a water-based acrylic furniture paint (acrylic enamel, cabinet paint). If you used an uncoated sheet such as birch, water-based polyurethane varnish protects pale wood without yellowing it; two thin coats in a matte or satin sheen are enough.

Don't paint the slots or the notches. Each coat of paint narrows the clearance in the slot, and every time the stand is set up and taken apart, the paint at the slot mouth rubs and wears away. Before painting, cover these areas with masking tape, paint while the parts are separate, and remove the tape after the paint has dried.

Food contact: I'm not making a firm ruling on whether the wood, the sheet's prefinished coating, or a product you apply afterward is suitable for direct contact with food. Here is what I recommend:

• Arrange cupcakes in their paper liners or on small serving plates; don't put frosted items directly on the wood surface.
• If you apply paint or varnish, choose a product that is labeled as suitable for food contact ("food safe" or "food contact").
• Don't settle for the surface feeling dry to the touch; wait for the full cure time stated on the label, and only then use the stand with food.

You can build this project in two ways; which one you choose depends on what you have access to.

1. CNC / laser cutting — You hand the SVG, DXF, or DWG file from the package to a CNC or laser shop. All five parts come out with the same precision; the angled edges of the shelf holders and the 1/2" (12.7 mm) wide slots in particular are cut to the most accurate dimensions this way. If you're having it laser-cut, ask the shop beforehand whether its machine can cut 12 mm plywood cleanly.
2. Cutting by hand with a jigsaw — You draw the dimensions from the guide and the cut list on this page onto the sheet yourself and cut them out. The shelves are easy: rectangles with straight edges, rounded corners, and two open notches on each back edge.

I recommend CNC or laser cutting for the shelf holders. The holder has two angled edges, the gap between the two legs, and three narrow slots; the angle of the angled edge isn't written out separately in the guide. It can be drawn from the dimensions, but a small error in the angle shifts the position of all three slots and the shelves won't sit level. As a middle route, you can have the holders cut at a shop and cut the shelves yourself.

Three notes if you're cutting by hand:

• Long straight cuts: Cut the 25" (63.5 cm) shelf edges with the jigsaw run against a straightedge batten; a wavy shelf edge is immediately obvious at the front of the stand.
• Notches and slots: Cut the two sides of the notch parallel up to the line, cut out the piece between at its base, and true the base with a file. Cut the slot on the inside of the line and sneak up on the final size by sanding, test-fitting it with a shelf; material that's been removed doesn't come back.
• Rounded corners: You can cut the shelves' 1/2" (12.7 mm) radius corners square first and then round them with sandpaper.

Mark each shelf according to its number in the guide the moment you cut it; I explain why in the Identifying the Parts and Checking the Slots block.

The four topics below are the ones that are hard to fix once the parts are cut. Read them before you start cutting, before you send the file to a shop.

1. Measure your sheet before cutting. The slots and notches were drawn 1/2" (12.7 mm) wide. If you're taking your own sheet to the shop, measure its thickness with calipers and make sure it falls within the 11.5–12.7 mm range; if you'll use the shop's sheet, tell them the thickness explicitly. What happens with thicker and thinner sheets is covered in the Material Choice and Panel Thickness block.

2. Leave the kerf allowance on the correct side. A router bit or a laser beam removes some material over the line. In this project every part consists of a single outer line: the shelf notches, the holder slots, and the gap between the holder's two legs are all part of this outer line. Remind the shop that all the parts must be cut on the outside of the line. A slot cut from the wrong side grows and the shelf sits loose in it.

3. Don't change the layout. The shelves are 25" (63.5 cm) long and the short edge of the sheet is 24" (61 cm). That's why the parts in the file are arranged along the long edge of the sheet; if the shop will rearrange the parts with its own nesting software, tell them the shelves must stay parallel to the sheet's 48" (122 cm) edge.

4. The three shelves look very much alike. The shelves are the same size, but each has its own tier. Ask the shop to hand over the parts without mixing them up, and when you receive them, mark the shelves right away according to their numbers in the guide. Beyond that there's no additional work: there are no miter cuts, holes, or nail positions; ask the shop only to cut the contours in the file.

The five parts are easy to tell apart. The two shelf holders are exactly identical, with no right or left between them. All three shelves are 25" × 6" (63.5 × 15.2 cm) and look very much alike, but each has its own tier.

Identifying the shelves: In the perspective drawing in the guide, the shelves are numbered 1, 2, and 3 from bottom to top. Place the shelves according to these numbers; the moment you cut them, write their numbers on their undersides in pencil, so that the same shelf goes on the same tier every time you set up.

Test each shelf before you place it. Before the first setup, fit each shelf into its own slots once and take it out again: the shelf should go in all the way by hand, without being forced, and sit level. If a shelf doesn't seat fully, don't force it; compare its number against the guide again.

Slot check: Because the slots are drawn to the sheet's label thickness, 1/2" (12.7 mm), it's normal for a small clearance to remain on a sheet whose actual thickness is slightly thinner. If a slot feels tight, either your sheet is thicker than 12.7 mm or a burr is left over from cutting: lightly sand the cut edge of the slot with a flat block; don't force the shelf in with a mallet.

Apply the sandpaper only to the cut edge of the slot. If it touches the shelf's prefinished face, the coating gets scratched and that area goes dull; in a slot that's opened too much, the shelf also sits loose.

This stand has no assembly in the conventional sense: once the parts are cut and prepared, they fit together with the interlocking joints in seconds. No tools, glue, or waiting are needed; all you need is a flat surface and numbered shelves.

1. Place the shelf holders — One after the other, stand the two holders upright on a flat surface with their angled edges facing forward and about 18" (45.7 cm) between them.
2. Start with the bottom shelf — It's easiest to fit the shelves from bottom to top. Seat the 1st shelf so that the notches on its back edge land on the lowest slots of the holders; then fit the 2nd shelf into the middle slots in the same way.
3. Top shelf — Fit the 3rd shelf, that is, the top shelf, into the uppermost slots.
4. Check — The shelves should sit level, and the two ends of the shelves should stick out an equal 3" (7.6 cm) outside the holders. The bottom shelf projecting slightly in front of the holders' feet is by design; don't mistake it for misalignment.

Disassembly: The reverse of fitting. Take the shelves out of their slots one by one, then lay the holders down and pack the five parts flat, stacked on top of one another.

Don't force the shelves at an angle when fitting and removing them. Prying a shelf at one end can crush the slot edges; a crushed slot widens over time and the shelf starts to play. Hold the shelf equally at both ends and move it straight.

Don't sand the prefinished surface all over. The faces of the reference sheet are prefinished; sanding all over takes off this protective layer and dulls the surface. Use the sandpaper on the edges and on the points that feel tight during the slot check.

Ease the edges lightly: After cutting and before the first setup, soften the front edges and ends of the shelves with 180–220 grit sandpaper in a pass or two; clean up the angled front edge of the shelf holders the same way. That way the plywood edge splinters less, and cupcake liners, product packaging, and hands don't catch on the edge. Take off any fine burrs left over from CNC cutting at this stage too. The corners of the shelves are already rounded to a 1/2" (12.7 mm) radius in the file.

Don't round over the insides of the slots and notches. These are the surfaces that hold the shelves in place every time the stand is set up; in a slot whose mouth has been rounded over, the shelf plays. Here, use sandpaper only at the point that felt tight during the slot check, with a flat block and a little at a time.

Edge appearance: The layer lines on the cut edge stay exposed. You can leave them natural; if you want a more protected edge, brush a thin coat of water-based varnish onto the edges and protect the slot and notch edges with tape. The sequence I recommend: cut → number the shelves → sand the edges → slot check → (optional) edge varnish → set up.

This stand's stability comes from its geometry. The guide doesn't give a load limit, so I'm not going to give you a carrying capacity in kilograms; instead I'll explain how the stand stays balanced and what you should watch for.

The base is deep, the weight is at the back. The base of each shelf holder that sits on the table is 14-1/2" (36.8 cm) deep, while the stand is 17-1/8" (43.5 cm) tall. Because the upper tiers step back, the weight of the shelves and of what's on them bears on the rear part of the base; the bottom shelf extends only about 5/16" (0.8 cm) in front of the holders' feet.

Two thin plates carry the load. The shelf holders are 1/2" (12.7 mm) thick, and the shelves span 18" (45.7 cm) between them. The shelves are for light sweets and small sales items.

Points to watch for:

• A flat, solid surface: Because the stand rests on two thin bases, a thick, soft tablecloth or a folded piece of fabric can sink one of the bases, and the stand leans that way. If you use a cloth, make it flat and taut.
• Heavy items low and in the middle: Put the heaviest items on the lower tiers, between the two holders. Don't put anything heavy on the front edge of the shelves or on the 3" (7.6 cm) ends outside the holders; bottles, full bowls, or heavy decor objects aren't for this stand.
• Away from the table edge: Don't place the stand at a table edge where people passing by might bump it; set it at least a hand's width in from the edge.
• Children: The lower tiers are at a height small children can reach; if a child hangs on the front edge of a shelf, the stand can tip forward. At an event with a lot of children, keep the stand in your sight.
• Don't carry it loaded: Because the shelves sit glue-free, a shelf can slip out of its slot when the stand is lifted. Set the stand up in place empty, then arrange the cupcakes and items where it stands.
• With more than one unit: Because the units aren't connected to one another, each carries its own balance. Seat both bases of every unit fully on the table, and put the weight on the lower tiers of each unit separately.

Cleaning: Wipe with a damp, well-wrung cloth, then dry with a dry cloth. Don't soak the stand in water, wash it under the tap, or put it in the dishwasher; plywood doesn't tolerate staying wet for long, and the plies can swell and the slots can lose their shape. Wipe off frosting or sugar stains before they dry; the uncoated cut edges soak up a stain more easily than the surface.

Transport: I designed the stand to be taken apart and set up again. Taken apart, it breaks down into five flat parts; stacked up, by my calculation they make a package of about 25" × 17-1/8" × 2-1/2" (63.5 × 43.5 × 6.4 cm). You can carry it this way, in a thin box or bag, to a fair, a market stall, or a celebration and set it up on site; several units can be packed stacked the same way. When stacking the parts, put a cloth or cardboard between them so the prefinished faces don't scratch one another.

If you need to carry it assembled, its outside dimensions are 25" × 14-13/16" × 17-1/8" (63.5 × 37.7 × 43.5 cm). Carry the stand empty and lift it gripping the two holders by their lower parts with both hands; don't lift it by the shelves, because a glue-free shelf can slip out of its slot.

Storage: Store the disassembled parts in a dry place, away from heat sources such as a radiator or direct sunlight, stacked flat on a level surface; thin plywood can warp if left leaning at an angle for a long time. Keep it under a cover or in its box so it doesn't collect dust.

This stand is a load-bearing structure, so changing the size isn't just a matter of scaling the file up or down. Rescaling the CNC files in CAD software is technically possible, but the slots in the shelf holders and the notches in the shelves were designed for a 1/2" (12.7 mm) sheet. If you scale the file up or down proportionally, those slots change too, but your sheet's thickness stays the same; the shelves either sit loose in the slot or won't go into it. A scaled unit also won't meet the other units in the series at the same tier height. If you want a different size, message me on Etsy before changing the scale; let's work out together which measurements need to stay fixed.

Yes — this is a standard, platform-wide Etsy feature. The download link doesn't expire; you can re-access your files anytime from the "Purchases and Reviews" page in your Etsy account, with no limit on how many times you download.

Of course — I make every plan myself, and you're welcome to reach out to me directly through Etsy with any question, before or after your purchase. I stand behind every design I share.

No — these files are for personal use only. Selling what you make from them, or using the design or files for any other commercial purpose, isn't included in this purchase.

I don't offer refunds once the files have been downloaded — this is standard practice given the nature of digital goods. That said, if you run into an actual problem with the files (won't open, something's missing), reach out and I'll help sort it out.

I recommend a sheet labeled 1/2" (12.7 mm) or 12 mm that measures 11.5–12.7 mm in actual thickness. The slots in the shelf holders and the notches in the shelves were drawn 1/2" (12.7 mm) wide; in my own build, the parts fit together without any problem with a panel carrying that label. Avoid a sheet with an actual thickness above 12.7 mm: the shelves won't go into the slots. Avoid 10 mm and under as well: the shelves sit loose in the slots, and because the stand is glue-free, that gap lets the shelves play and the stand wobble. Measure your sheet with calipers and fit each shelf into its slot once after cutting. If you want to use a thinner or thicker sheet, the slots would need to be redrawn for that thickness; message me on Etsy before you start cutting, and let's adapt the file together.

When a single unit is filled with a single size of cupcake, it holds about 260 mini, 60 standard, or 45 large cupcakes. I calculated these figures from the shelf dimensions, placing the cupcakes one by one. I define the sizes by bottom and top diameter: mini 3/4" (1.9 cm) bottom, 1-1/4" (3.2 cm) top; standard 2" (5.1 cm) bottom, 2-1/2" (6.4 cm) top; large 2" (5.1 cm) bottom, 3" (7.6 cm) top. The count varies with the diameter of the cupcake liner and how closely you space them. If you set up more than one unit, multiply the count by the number of units. The 5" (12.7 cm) of clear height between the tiers is enough even for large cupcakes with tall frosting. The same shelves can also be used to display small items at a sales stall. Details are in the Capacity and Layout block.

Yes. I designed this stand to be multi-purpose: alongside cupcakes and light sweets, it also works as a display stand at a fair, market, or craft stall for jewelry, small gifts, small handmade items, and counter items such as business cards and price tags. The 25" (63.5 cm) long flat shelves present the items in rows parallel to the front edge of the counter; because each tier sits behind the one before it, the items in the back rows are visible from the front too. There's 5" (12.7 cm) of clear height between the tiers, and taller pieces go on the open top shelf. If your counter is long, you can set up more than one unit side by side or back to back. The shelves are for light items; don't put bottles or heavy objects on them. Details are in the Capacity and Layout block.

I don't recommend it. I'm not making a firm ruling on direct food contact with the wood, with the sheet's prefinished coating, or with the paint or varnish you put on afterward; the safest way is to arrange the cupcakes in their paper liners or on small serving plates. If you're going to paint or varnish, choose a product whose label says it's suitable for food contact, and wait for the full cure time stated on the label. Details are in the Surface, Edges and Food Contact block.

Yes. I designed this stand to be glue-free: the shelves sit in the shelf holders' slots by the interlocking fit alone, with no nails or screws. Setting up and taking apart takes seconds. Taken apart, five flat parts remain; stacked up, they make a package of about 25" × 17-1/8" × 2-1/2" (63.5 × 43.5 × 6.4 cm). You can take it to a fair, a market stall, or a celebration as a flat package and set it up on site. Don't force the shelves at an angle when fitting and removing them; hold them equally at both ends and move them straight. Details are in the Assembly and Disassembly block.

Yes, this stand was designed for that. The units in the series share the same shelf holder profile, 6" (15.2 cm) shelf depth, and tier heights; when you put them side by side, the shelves continue at the same level. The units aren't connected to one another, and there are no connecting pieces between them: each one stands independently, and you position them as you need. Two units side by side give a row 50" (127 cm) long; when you place them back to back, you get a display island with a footprint of about 25" × 29-5/8" (63.5 × 75.3 cm), usable from both directions. The series' corner unit can be placed at the end of this stand to give the row a corner turn; two corner units and one linear unit make a U-shaped layout. Multiply the capacity by the number of units. Details are in the Modular Use block.
